DISABLED FRIENDLY

Ease Operation: Single hand operating thumb-turn lever design, operation force no more than 20N.

Grip-Friendly Design: 180mm square handle (no less than 100mm for standard) for full-palm control.

Wheelchair-Adapted Height: Installed 900-1100mm from floor - aligns with seated eye level.

Non-Glare Surface: Matte powder-coated texture prevents visual distractions for low-vision users.

ADVANTAGE

Error-Proof Operation

The handle lock features a built-in error-proof function that prevents locking via the thumb-turn lever when the door is not fully closed.

Easy Installation & Adjustment

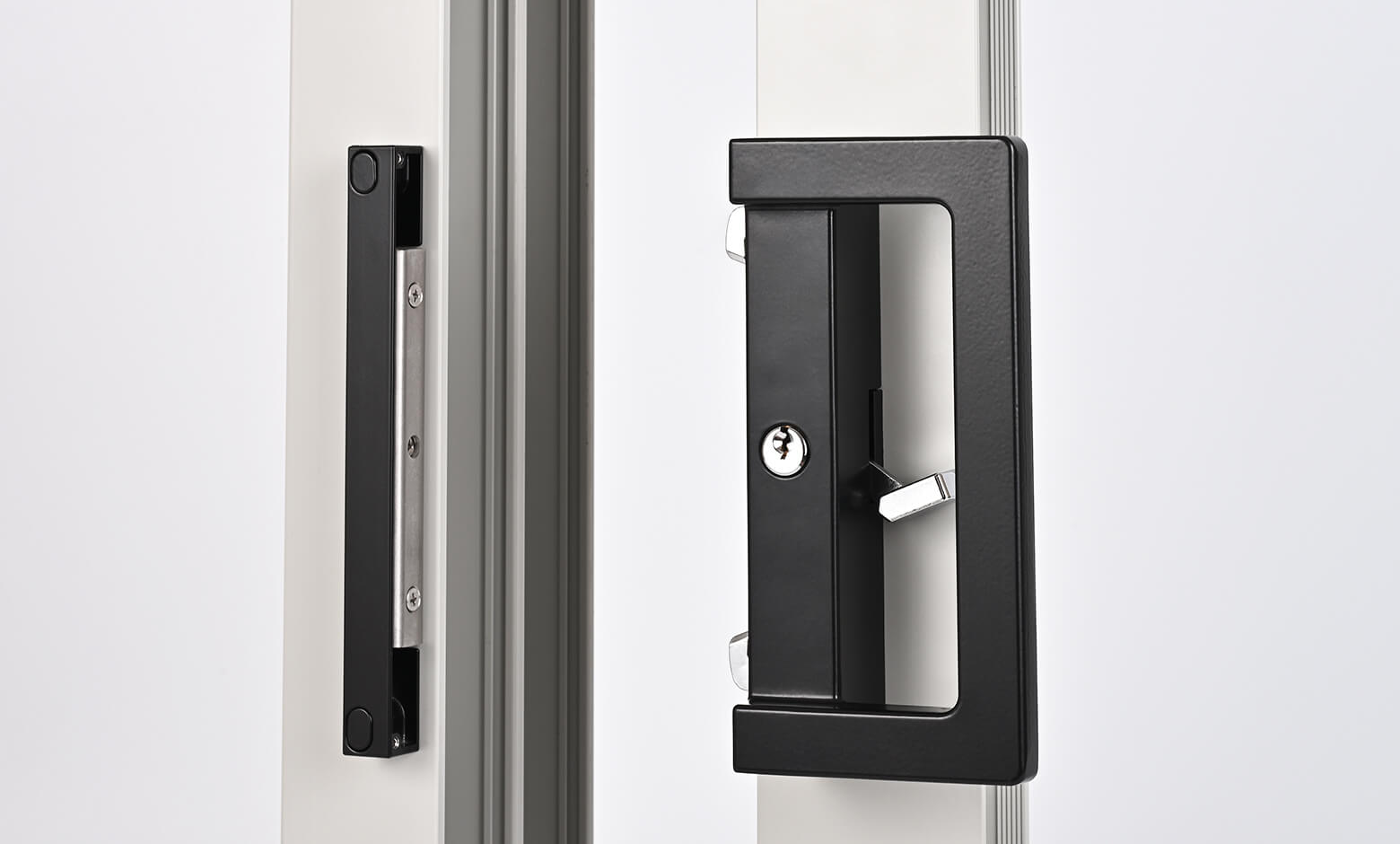

The 6mm depth-adjustable strike plate enables easy and correct engagement between strike and lock.

Locking & Non-Locking Options

Available in Locking & Non-Locking Options to meet various application requirements.

Single & Double Opening Options

Available in Handle Sets for Single and Double Opening.

Standard & DDA Options

Available in Standard & DDA Handle Sets.

Twin Point Locking

For added security.

PRODUCT DETAILS

Door Thickness: 18-38mm

Spacers available: 0-8mm of application surfaces height range

Center Spacing: Industry Standard 82mm

Material: Aluminum Alloy Housing, Stainless Steel Strike Plate

Finishes:

Black Powder Coating

Silver Powder Coating

White Powder Coating

Custom Colors Available

Key:

Supplied individually keyed with two keys per lock

STANDARDS

S4 (Security) Australian Lock Standard (AS 4145.2 2008)

D8 (Durability) Australian Lock Standard (AS 4145.2 2008)

240hrs (NSS) Corrosion and related property tests (AS 2331.3.1 2001)

AS 1428.1; Disability Discrimination Act (DDA)

APPLICATION

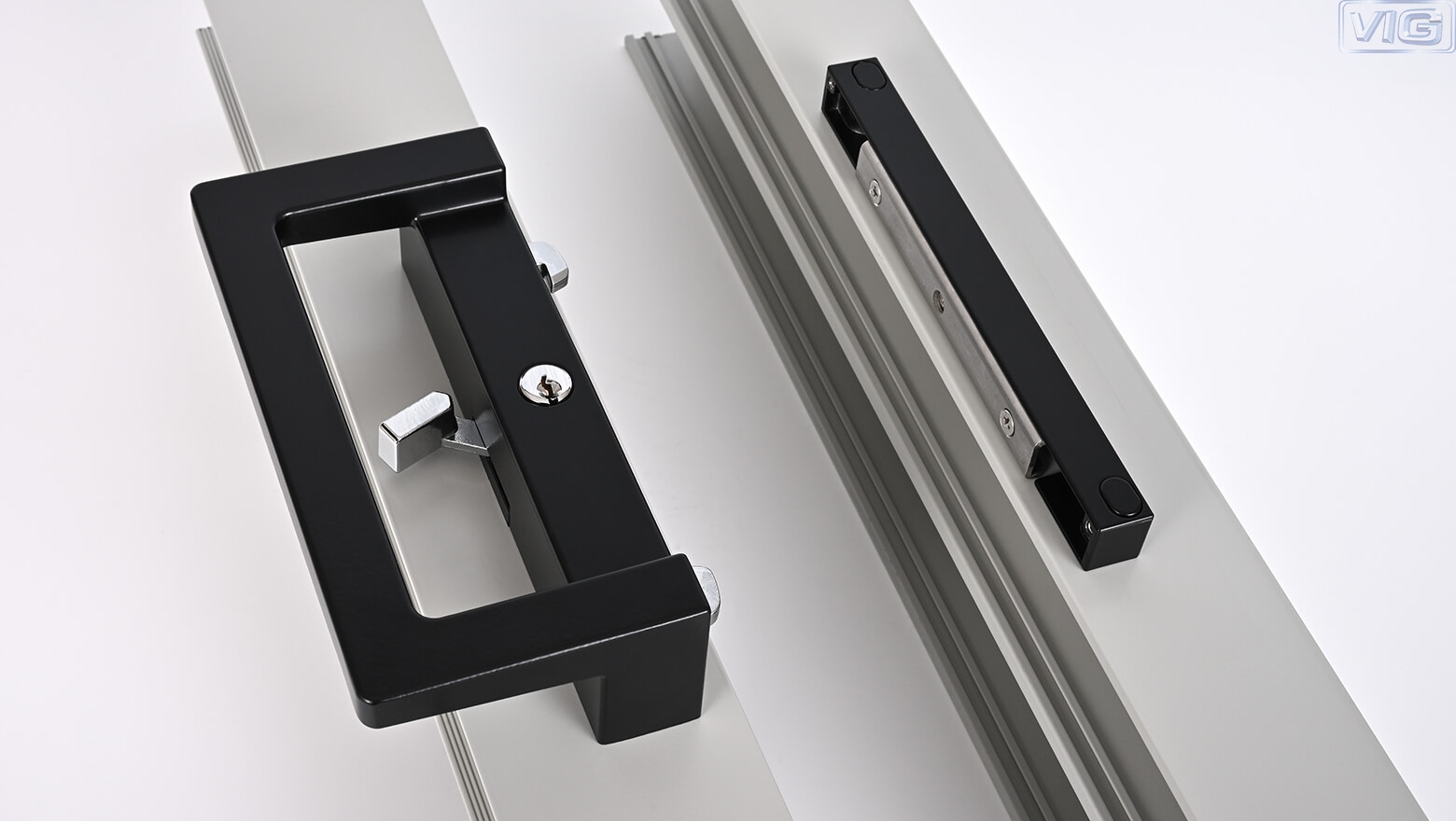

The square handle design and smooth operation ensure user-friendly functionality, suitable for most aluminium and timber patio sliding doors.
